€3,800.00

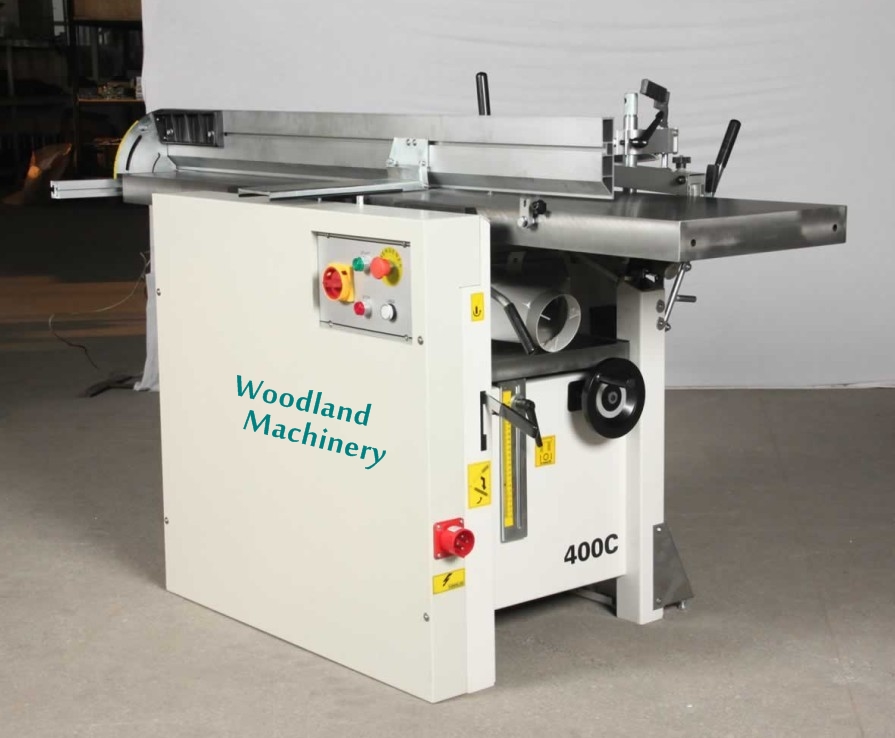

20-18-505 Combined surface planing – thicknessing-mortising machine WOODLAND MACHINERY (new)
- Manufacturer: Woodland Machinery
- Year: NEW
- Street: Fabriko 3a,
- City: Jonava
- Country: Lithuania
- Listed: September 23, 2019 8:23 pm
- Expires: 579 days, 14 hours
Description
Price 3800 Eur (EXW Jonava, Lithuania)
Type 400C
Surface planer:
Table dimensions 400х1800 mm
Cutterblock diameter 70 mm
Cutterhead rotating speed 5700 rpm
3 knives 400x20x3 mm
Max table adjustment 4 mm
Thickness:
Table dimensions 400×760 mm
Max cutting depth 4 mm
Feed speed 7 m/min
Cutterblock rotation speed 5700 rpm
Max working height 220 mm
Min working height 4 mm

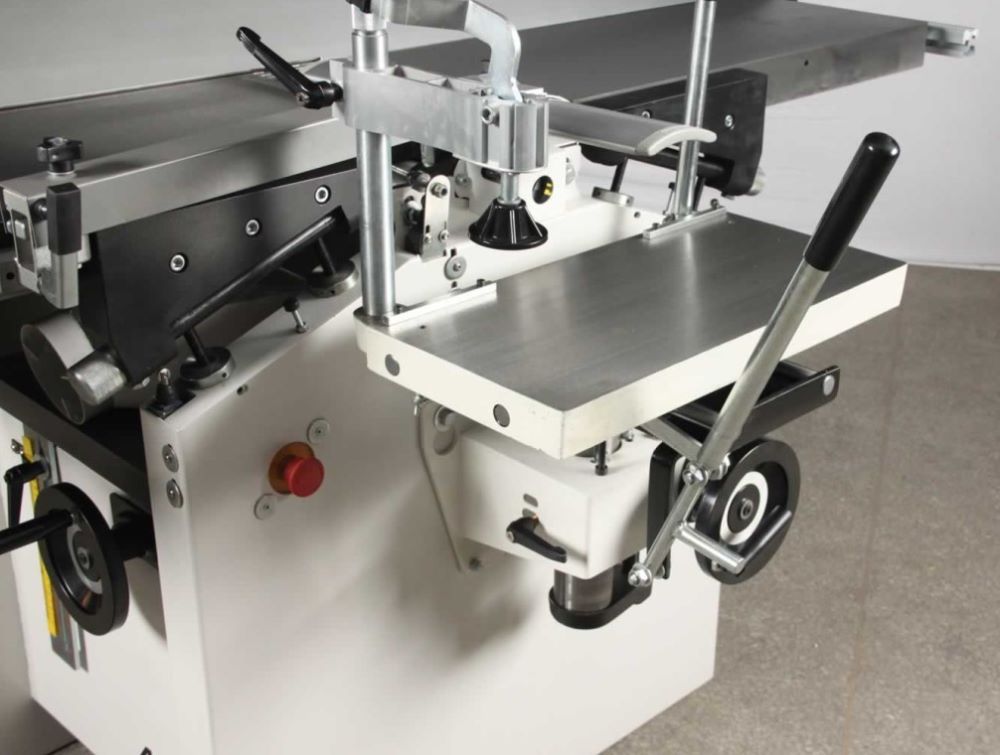

Mortising:
Table dimensions 250х500 mm
Longitudinal stroke 205 mm
Trasversal stroke 95 mm
Chuck (SX) 16 mm
Chuck rotation speed 5700 rpm
Motor 3 kW
Accessories: service wrenches, guards on mortise chuck, planer guide.
Weight 390 kg
