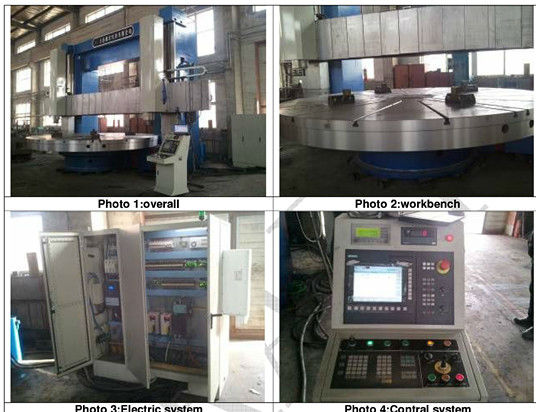

Low Price Cheap Vertical Lathe
- Manufacturer: Dalian YImei Machinery Co., Ltd(China)
- Year: 1998
- Street: Guanggu Road No.11 Economic Development Zone, Dalian China
- City: Dalian
- Country: China
- Zip/Postal Code: 116600
- Listed: April 10, 2014 5:24 am
- Expires: This ad has expired
Description
Main technical specification
|
Term |
Unit |
C5225E |
C5228E |
C5231E |
C5235E |
CQ5240E |
|
Max. turning diameter |
mm |
2500 |
2900 |
3150 |
3500 |
4000 |
|
Worktable diameter |
mm |
2250 |
2250 |
2250/2830 |
2830/3150 |
2830/3150 |
|
Max. height of work piece |
mm |
1600/2000/2500 |
2000/2500 |
2000/2500 |
2000/2500 |
2000/2500 |
|
Max. weight of work piece |
T |
10/16 |
10/16 |
10/16 |
10/16 |
10/16 |
|
Max. cutting force of right tool post |
Kn |
35 |
35 |
35 |
35 |
35 |
|
Max. cutting force of left tool post |
Kn |
30 |
30 |
30 |
30 |
30 |
|
Max. total cutting force |
Kn |
65 |
65 |
65 |
65 |
65 |
|
Max. torque of worktable |
nm |
63000 |
63000 |
63000 |
63000 |
63000 |
|
Stage number of variable speed of worktable |
16 |
|||||
|
Variable speed range of worktable |
r/min |
2-63 |
2-63 |
2-63 |
2-63 |
2-63 |
|
Feeding range of tool post |
mm |
0.25-90 |
0.25-90 |
0.25-90 |
0.25-90 |
0.25-90 |
|
Horizontal travel of tool post |
mm |
1400 |
1600 |
1730 |
1880 |
2250 |
|
Vertical travel of tool post |
mm |
1000/1250 |
1000/1250 |
1000/1250 |
1000/1250/1600 |
1000/1250/1600 |
|
Crossbeam moving speed |
mm/min |
350 |
350 |
350 |
350 |
350 |
|
Tool post rapid moving speed |
mm/min |
1560 |
1560 |
1560 |
1560 |
1560 |
|
Max. swivel angle of tool post |
。 |
±30 |
±30 |
±30 |
±30 |
±30 |
|
Main electric motor power
|
Kw |
55 |
55 |
55 |
55 |
55 |
|
Weight of machine tool |
T |
32/35/37 |
34/36 |
36/40/42 |
43/45 |
48/50 |
Note: Concerning technical data can be changed as per customer’s need.
